Let's dig into the world of transformers and know more about them

Let's dig into the world of transformers and know more about them

Demonstrating Distinctive Kinds of Transformers

According to the principles of electromagnetic induction, a transformer is an electrical device that transfers electricity from one electrical circuit to another without changing the frequency. Voltage power transmission usually occurs with voltage and current change. Transformers increase or decrease AC voltage.

Variable Voltage Transformers manufacturers are making state-of-the-art transformers to meet a variety of needs. Some transformers may be of the type found at the production station or tiny enough to hold in your hand. Regardless of the shape or size, the purpose of the transformer remains the same: it converts electricity from one type to another.

Many types of transformers are in use today. This source closely examines distribution transformer, autotransformer, power transformers, isolation transformer, instrument transformers, current transformers and potential transformers.

Working principle of transformer

It is important to remember that transformers do not generate electricity; they transfer electrical energy from one AC circuit to another using magnetic coupling. The main part of the transformer is used to provide a controlled path of current flowing through the winding to the magnetic current generated in the transformer, also known as coils.

The basic transformer consists of four primary components. Parts include:

Input connections - The input side of the transformer is called the primary side because the main electrical power to be replaced is connected at this point.

Output connections - The output power is transmitted to the load via the output side or the secondary side of the transformer. Depending on the load requirement, the incoming electrical power may increase or decrease.

Winding - Transformers have two windings, primary winding and secondary winding. The primary winding coil fetches power from the source. The secondary winding is such a coil providing power load at switched or altered voltage. In general, these two coils are divided into several coils to reduce flux production.

Core - The transformer core is used to provide a controlled line for the magnetic flux induced in the transformer. The core is not commonly a steel bar but is fabricated of thin laminated steel sheets or levels. This arrangement abets to eliminate and deplete overheating.

Transformers usually have two types of cores: shell type and core type. The two types are separated by the mechanism by which the primary and secondary coils are placed alongside the steel core.

Shell type - With this, the windings have a laminated core around them.

Core type - With this, the windings are encircled by a laminated core.

When the input voltage is applied to the primary winding, the alternating current begins to flow through the primary winding. According to the current flow, the transformer core is with a changing magnetic field. When this magnetic field crosses the secondary winding, an alternating voltage is generated on the secondary winding.

Transformer configurations

There are different armatures for single-phase and three-phase systems.

Single-phase power - Single-phase transformers are often used to supply power for residential lighting, air conditioning, receptacle and heating purposes. Single-phase transformers can be further diversified by splitting the primary winding and the secondary winding into two equal parts. The two parts of the winding can be reconnected in series or in parallel configurations.

Three-phase power - Power can be distributed through a three-phase circuit consisting of transformers, using three single-phase transformers or using a three-phase transformer. When having a significant power of three-phase power, it is more economical to use a three-phase transformer. The unique arrangement of the winding and core saves a lot of iron.

Delta and Wye - Three-phase power has two connection configurations: Delta and Wye. The delta and wye are Greek letters, which refer to the way the conductors are configured in transformers. In a delta connection, three conductors are connected from end to end in a triangular or delta shape. For a wire, all the conductors are transmitted from the centre, i.e. they are connected at a common point.

Three-phase transformers - Three-phase transformers have six windings; Three primary and three secondaries. The six windings are connected by the manufacturer as Wye or Delta. As mentioned earlier, the primary windings and the secondary windings are each connected in a delta or wye framing. They do not need to be connected in the same configuration on the same transformer. The actual connection configurations used to depend on the application. This option is typically obtained by Dry Type Transformer manufacturers.


Autotransformer is a unique kind of power transformer. It consists of a single, continuous winding pressed to one side to provide a step-down or step-up function. It is different from a conventional and secondary transformer in that the primary and secondary are completely separated from each other, but magnetically connected to a common hub. The windings of the autotransformer are electrically and magnetically connected to each other.

It is initially cheaper than the similarly rated two-winding transformer. It has better control (lesser voltage drops) and more efficiency. Additionally, it can be used to obtain a neutral wire for a three-wire 240/120-volt service, as well as the second of two winding transformers. The autotransformer is not safe to use in normal distribution circuits. This is because high voltage primary circuits are directly connected to a low-voltage secondary circuit.

Distribution transformer

A pole-type distribution transformer is used to supply a small amount of power to residential areas. It is used at the end of the delivery system of the electrical utility.

Isolation transformer

Insulation transformer is a very specialized transformer. Servo Control Voltage Stabilizer manufacturers have typically opted for these. It has a 1: 1 turn ratio. Therefore, it does not step up or down the voltage. Instead, it acts as a security device. It is used to disconnect the grounded conductor of a power line from any part of the chassis or circuit load. The use of an insulation transformer does not reduce the risk of accident or shock if contact occurs across the secondary winding of the transformer.

Technically, any real transformer used to transmit signals and power is isolated because it is not connected to the primary and secondary conductors, but only by induction. However, disconnecting circuits (as opposed to the normal transformer operation of a voltage converter) are only commonly referred to as insulation transformers.

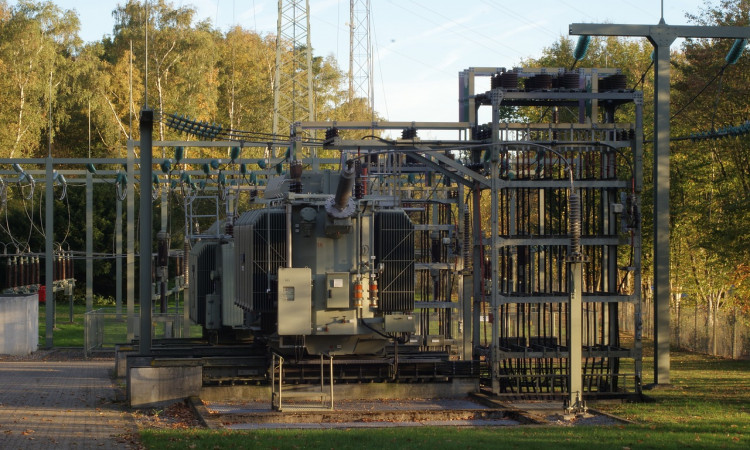

Power transformer

The power transformer is mainly used to supply power from the power supply line to the circuit system or to one or more parts of the system. It has been chosen by AC Transformer manufacturers. The power transformer used in solid-state circuits is called a rectifier transformer. The power transformer is rated based on the maximum voltage and current delivery capacity of the secondary.

Instrument transformer

To measure high values of current or voltage, it is advisable to use standard low-range measuring instruments with specially constructed instrument transformers, also known as accurate ratio transformers. The transformer makes the exact ratio as the name implies. It varies in exact ratio, allowing the attached device to measure current or voltage without running full power through the device. A relatively small amount of power needs to be converted because it is only a load, it is called a load and it is the sensitive moving elements of an ammeter, voltmeter or wattmeter.

There are two types of instrument transformers: Potential- Used with a voltmeter to quantify the voltage (potential difference) in AC. Current - Used with an ammeter to estimate currently at AC voltages

Potential transformer

A potential transformer is a carefully designed, highly accurate step-by-step transformer. It is usually used with a 120-volt voltmeter. By multiplying the reading on the voltmeter (called deflections) by the ratio of the conversion, the user can determine the high side voltage. Typical conversion ratios are 10: 1, 20: 1, 40: 1, 80: 1, 100: 1, 120: 1 and more.

In general, a potential transformer is very similar to a standard two-winding transformer, which handles a very small amount of power. Transformers for this service are always shell type, as this structure has been proven to provide excellent accuracy. Potential transformers are designed to monitor single-phase and three-phase power line voltages in power metering applications.

Current transformer

The current transformer consists of a primary coil of one or more heavy wires. Control Transformer manufacturers covet to work with it. It is always connected in series with the current measuring circuit. The secondary coil is made of fine wire twists, which must always be connected across the ammeter terminals. The secondary of the current transformer should never be an open circuit. This is because it is not connected to the primary permanent source. There is a wide range of primary voltages because the device can be connected to different types of conductors. The secondary must always be available to respond to the primary and prevent the core from becoming completely magnetic (enclosed-circuit). If this happens, the device will no longer read accurately.

The clamp-on ammeter works in a similar way. By opening the clamp and placing it around the current-carrying conductor, the conductor acts as a single turn primer. The secondary and ammeter are conveniently mounted on the handle of the device. The dial allows to accurately measuring many ranges of current.
